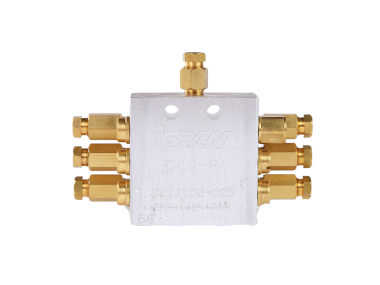

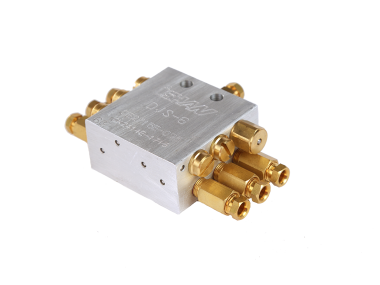

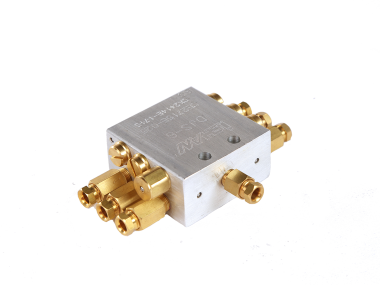

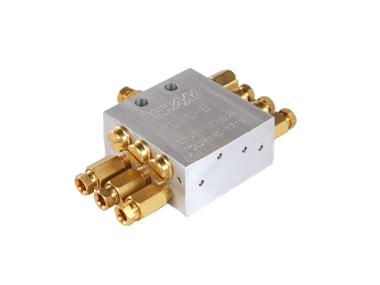

DJS progressive distributor

Performance and characteristics:
The progressive grease distributor is an advanced and reasonably structured oil distributor. The distributor series can be used for medium pressure and wide temperature changing conditions. It can be u

Model:DJS-6

Category:Grease distributor

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
The progressive grease distributor is an advanced and reasonably structured oil distributor. The distributor series can be used for medium pressure and wide temperature changing conditions. It can be used as a single line lubrication system with manual electric and pneumatic pumps.

Note:
for the dispenser's oil outlet can not plug any oil outlet otherwise it will affect its normal work damage the distributor.

Scope of application:
It is suitable for the sub distributor of various medium and small type machine tools and punching machines plastic machinery equipment or large single line lubrication system.

Appearance size diagram
The size of the configuration is different from the DU and the working principle is with the DU type.

Type and technical parameters:
Type Item number Import and export tooth pattern Oil outlet number The amount of spitting
(cc/cy)
Rated pressure
(kgf/cm²)
L
DJS-06 20211 G1/8 6 0.3 200 60
DJS-08 8 75
DJS-10 10 90
