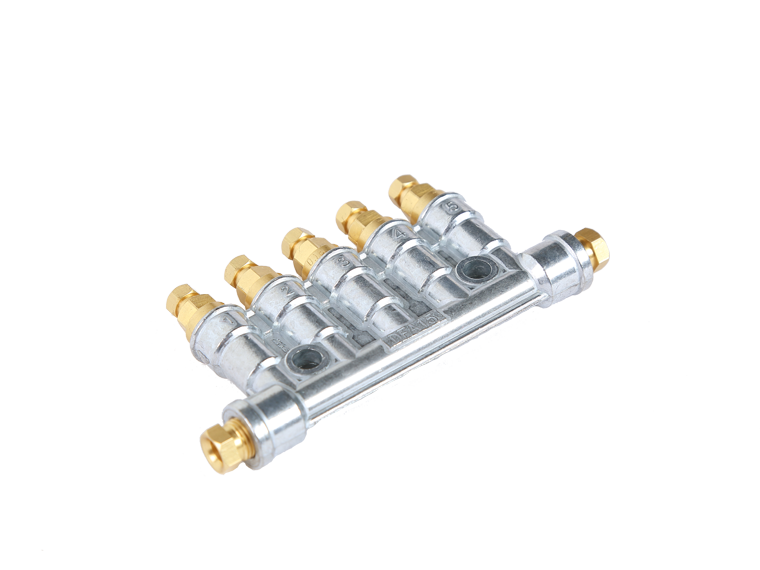

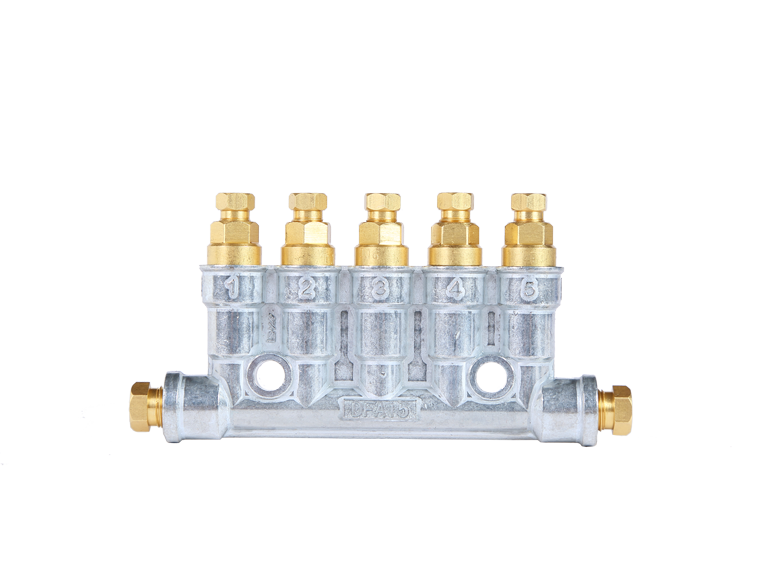

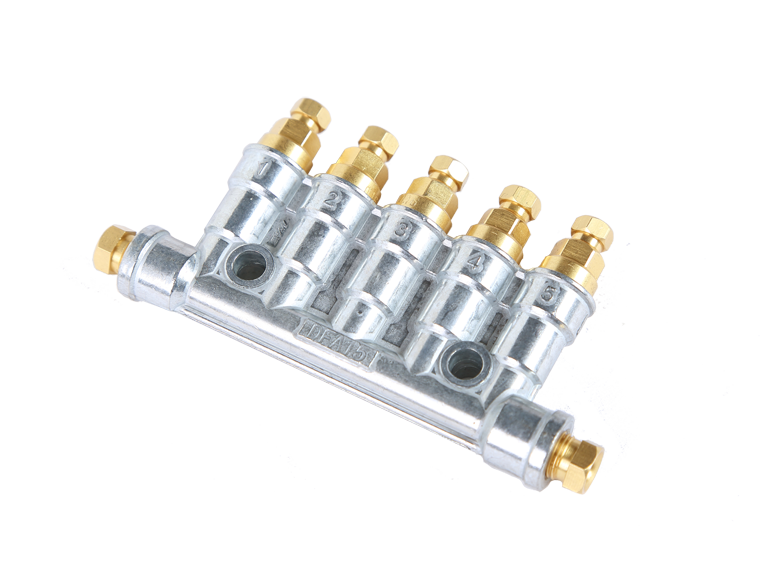

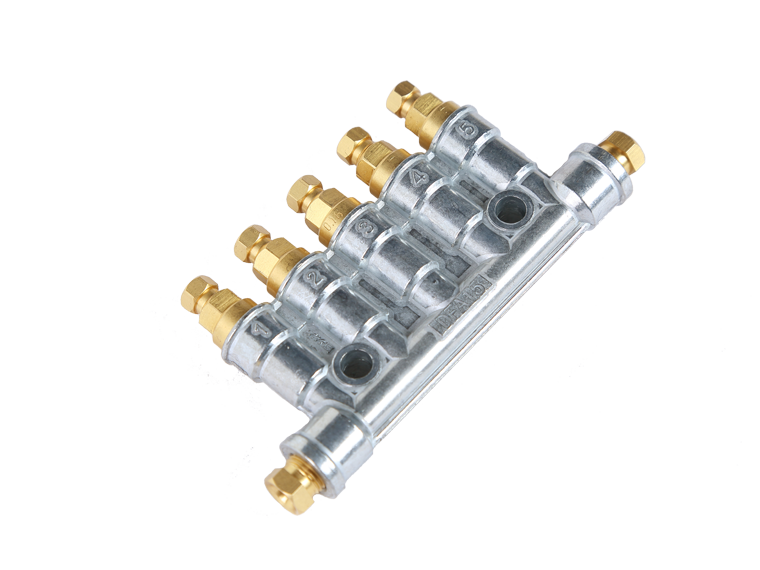

DFA15

Performance and characteristics:
1. Each fixed flow is supplied to the lubricating part.
2 not because of the oil…

Model:

Category:DFA volumetric splitter

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
1. Each fixed flow is supplied to the lubricating part.
2, not because of the oil viscosity and oil flow time effect;
3, must be used with the volume type oil injection machine.
4, applicable to the working pressure in the 15 ~ 25kgf/c square meters volume type cycle lubricating system.

Appearance size diagram
Type and technical parameters:
type Product No. Export number A B Exits
(cc/stroke)
weight
(g)
DFA12 20208 2 57 34 0.03
0.06
0.1
0.16
95
DFA13 3 75 17 142
DFA14 4 96 34 190
DFA15 5 110 51 236
DFA16 6 127 68 283
The working principle shows that:
1 the lubricating oil from the medium pressure of the oil pump makes the umbrella valve in the distributor push upwards.
2 when the umbrella valve closed the core hole of the core it forced the piston to overcome the spring force to begin to rise. Remove the original lubricating oil from the upper chamber;
3. When the piston is moved to the top of the upper chamber the oil discharge is completed at the same time.
4 when the oil pump stops supplying oil the pressure relief valve opens automatically making the pressure oil in the main oil pipe back to the oil through the pressure relief valve. When the system pressure drops the piston in the distributor begins to respond under the action of the spring. When the umbrella valve returns to the distributor inlet the piston stores the lubricating oil stored in the lower cavity to the upper chamber through the core hole and the next oil supply is also ready.
