Integrated composition method:
The minimum number of pieces in the integrated combination (that is the group) is 3 with up to 10 pieces. The first tablet (A) the middle slice (M) the non slice (E) and the most of the tablets were 8. If the distributor oil outlet to increase the displacement or lubrication points is odd the film can be pro oil supply port combination (throughout) can also be added excessively or three way pipe joint with two oil outlet into a mouth of oil. Remember that you can't block out the oil port at any time.
Remarks:
1. DP1 type 5 more than the front and back side of the support 4 plates below the front side of the support
2. The cycle indicator is available for proximity switch selection
3. 0.08cc flow hole can not be brought with a cycle indicator.
|
Product No. | The amount of spitting (cc/cy) | Nominal pressure | Starting pressure | Combinatorial number | Number of oil outlet | The oil inlet mouth lines | A set of oil lines | |||||
| (kgf/cm2) | (kgf/cm2) | ||||||||||||

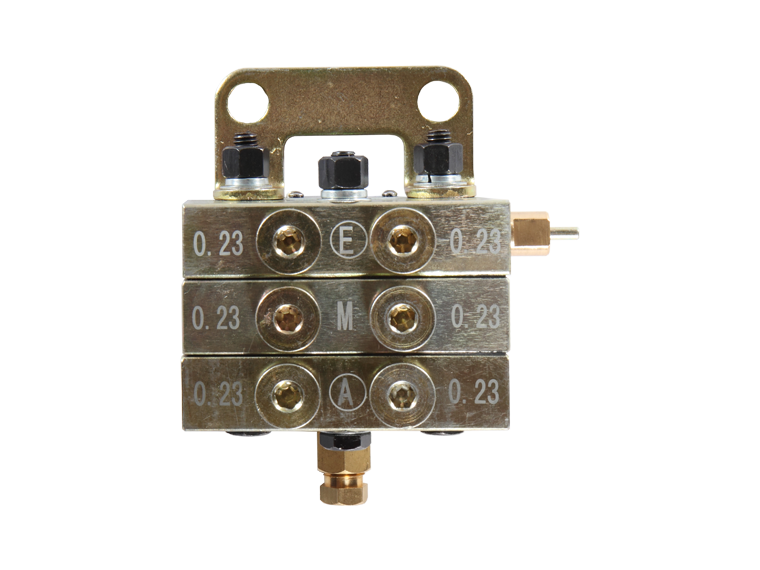

| DP1 | 20209 | 0.08/0.16/0.23/0.32 | 160 | More than 10 | 3 ~ 10 | 6 ~ 20 | PS1/8 | M10*1.0 | |||||

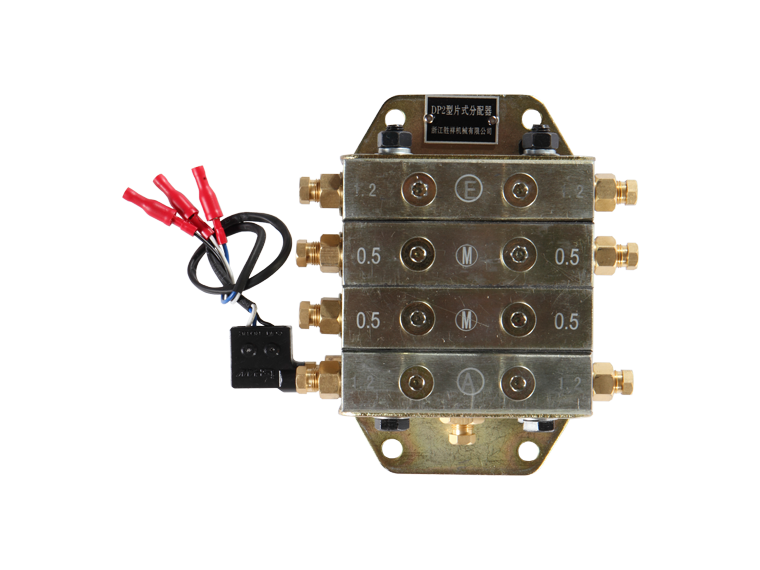

| DP2 | 0.5/1.2/2.0 | G3/8 | PS1/4 | ||||||||||
Combination of shape and size:
| Type | Oil outlet number | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Combinatorial number | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| DP1 | H (mm) | 48 | 64 | 80 | 96 | 112 | 128 | 144 | 160 |
| DP2 | H (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 |
