YET-C2 4L aluminum alloy

Performance and characteristics:
1. won the EU CE certification.
2. a liquid level switch is provided to output the abnormal signal of the liquid level.
3. a motor self protection device is provided to prevent overheatin

Model:YET-C2

Category:YET volumetric oil injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Name specification

Performance and characteristics:
1. won the EU CE certification.
2. a liquid level switch is provided to output the abnormal signal of the liquid level.
3. a motor self protection device is provided to prevent overheating and overloading.
4. pressure relief valve can protect the pump and the pipeline to reduce the loss.
5. panel indicator can display the actuating state of the oil injector (YET-C2).
6. the pressure switch can be selected freely according to the requirements of the customer (YET-C2P2).
7. has a "FEED" key, which can be forced to lubricate.
8. longest lubrication time less than 2min, the shortest time between songs more than 3min.

Scope of application
The YET type machine is suitable for the centralized lubrication system of machine tools, plastics, textile, light industry, printing and conveyor.

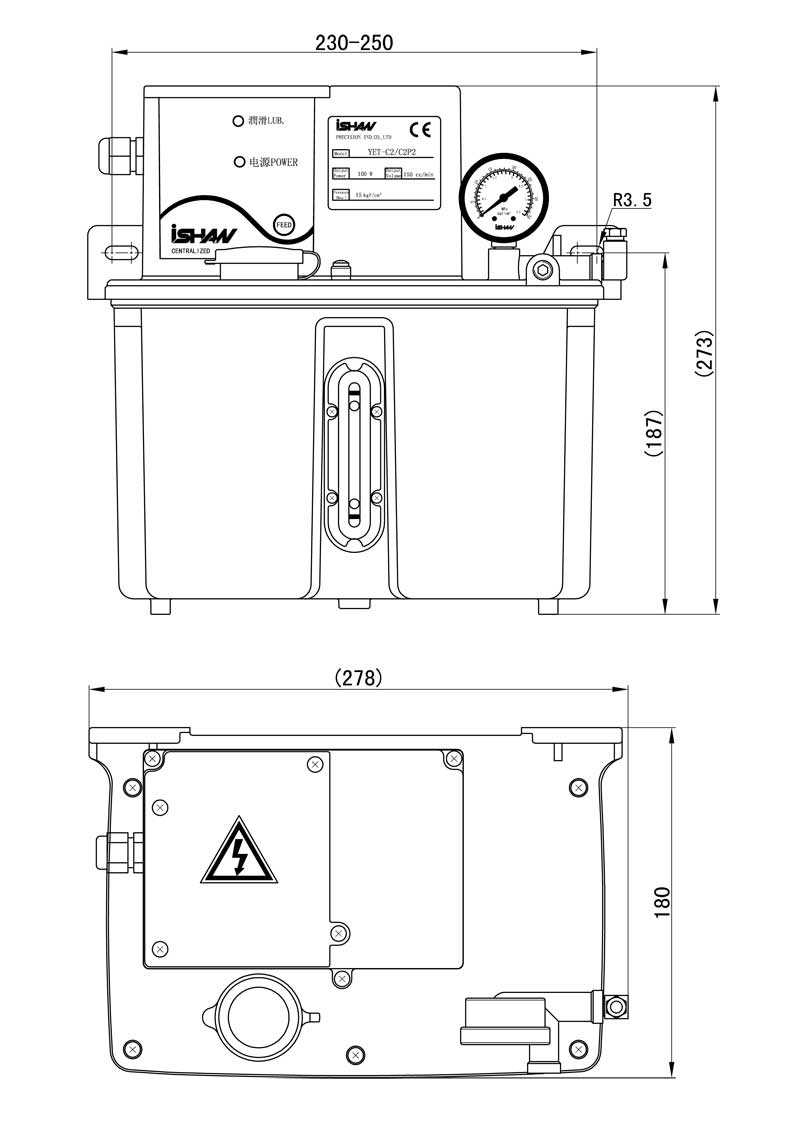

Appearance size diagram:

Type and technical parameters:
  project
type
Product No. Single phase Voltage (VAC) Power (W) Abnormal output connection capacity (A) Lubrication time Interval time Spit out the caliber Maximum spitting pressure (kgf/cm²) The amount of spitting (cc/min) Pressure switch (kgf/cm²) Liquid level switch Oil tank capacity (L) Weight (kg)
YET-C2 112101 110
or
220
100 Liquid level switch 0.3 The PLC control system must be connected to the The PLC control system must be connected to the Ø 6 15 150 No Upper power (oil conduction) 2L (resin) 2.5
3L (resin) 2.7
YET-C2P2 pressure switch 3.0 11.5↑ off 4L (resin) 3.0
4L(alufer) 3.5

Wiring diagram:
Hydraulic schematic diagram:
