PRODUCT

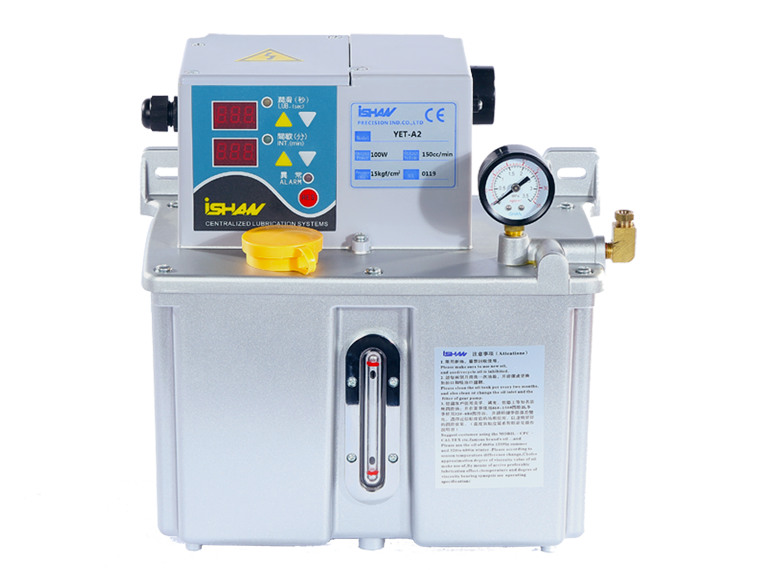

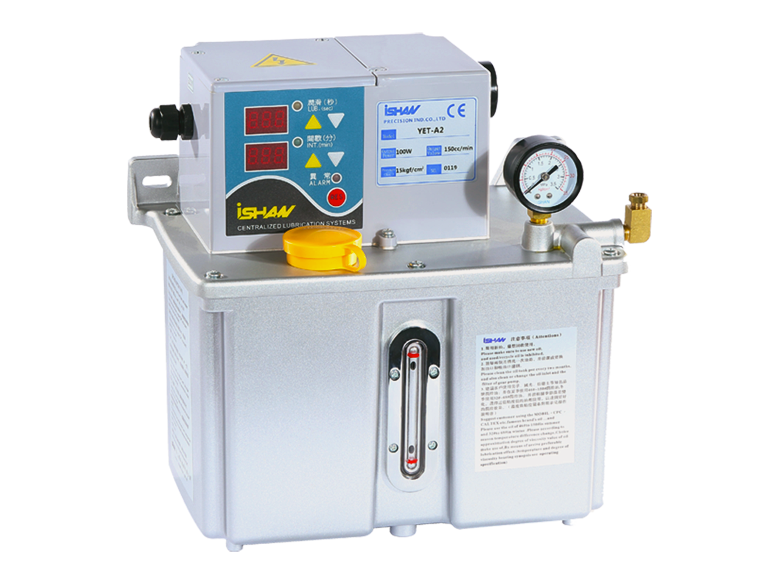

YET-A2 4L aluminum alloy


Performance and characteristics:
1. won the EU CE certification.
2. the three mode of open machine can be set:
[a] lubrication: the timing of the lubrication time is first performed when the machine is opened.

Model:YET-A2

Category:YET volumetric oil injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Name specification


Performance and characteristics:
1. won the EU CE certification.
2. the three mode of open machine can be set:
[a] lubrication: the timing of the lubrication time is first performed when the machine is opened.
[b] intermittence: the interval time is first performed when the machine is opened.
[C] memory: the time before the start of the machine.
3. lubrication and interval time can be adjusted.
4. is equipped with a liquid level switch. When the oil is insufficient, the wasp will send out an alarm to output the abnormal signal of the liquid level.
5. there is a depressurized device in the volumetric system.
6. a motor self protection device is provided to prevent overheating and overloading.
7. release pressure release function can protect the pump and pipeline to reduce damage.
8. lubrication time (second / minute) and interval time (second / minute / time ) unit can be selected.

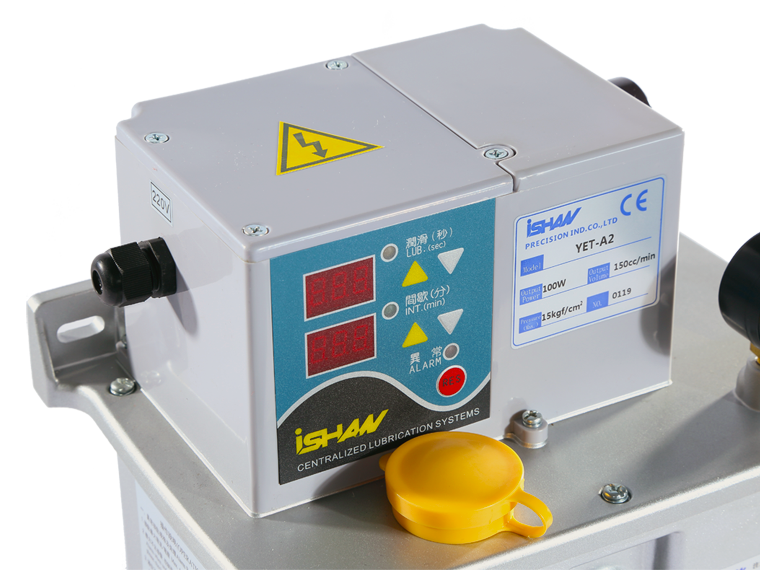

9. panel indicator can show the actuating state of the oil injector.
10. according to the mechanical actuating frequency is set according to the intermittent period, counting.

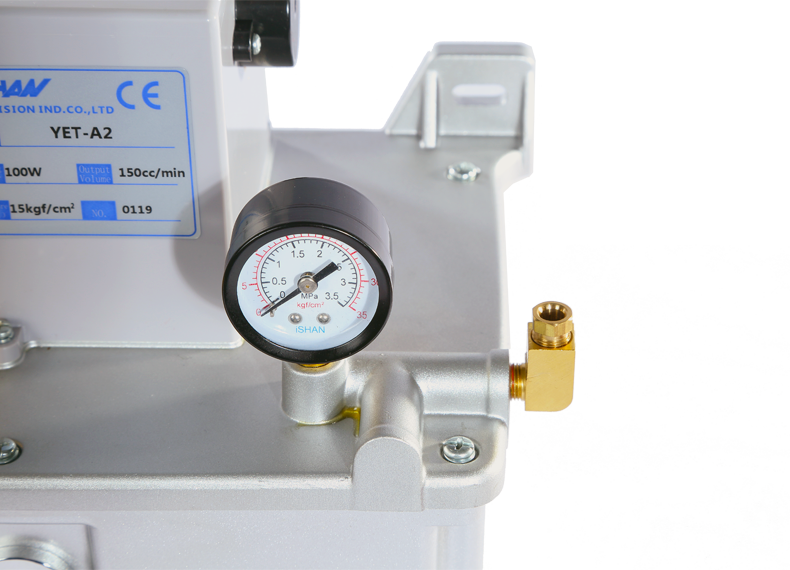

11. pressure switch can be selected freely according to customer's requirements [YET-A2P2]
12. has a "RES" key, which can be forced to lubricate.
13. longest lubrication time less than 2min, the shortest interval is greater than or equal to 3min.

Scope of application
The YET type machine is suitable for the centralized lubrication system of machine tools, plastics, textile, light industry, printing and conveyor.

Appearance size diagram:

Type and technical parameters:
  project
type
Product No. Single phase Voltage (VAC) Power (W) Abnormal output connection capacity (A) Lubrication time (second / minute) Interval time
(second / minute / time )
Spit out the caliber Maximum spitting pressure (kgf/cm²) The amount of spitting (cc/min) Pressure switch (kgf/cm²) Oil tank capacity (L) Weight (kg)
YET-A2 112101 110
or
220
100 3 1 ~ 999 1 ~ 999 Ø 6 15 150 No 2L (resin) 2.7
3L (resin) 3.0
YET-A2P2 11.5 4L (resin) 3.3
4L (alufer) 3.7

 Wiring diagram

Hydraulic schematic diagram
