Name specification
Performance and characteristics：
1: the work pressure can be adjusted and displayed through the pressure gauge;
2: the pressure switch can be used to detect the pressure of the pipeline and output by the electrical signal.
3: a liquid level switch can be used to output the abnormal signal of the liquid level.
4: oil can be recycled to save oil.
5: the return oil port is set back to the oil magnets and filter so as to ensure the cleanliness of the oil.
6: the application of oil VG30 to 150cSt.
Scope of application:
The YLD machine is suitable for the resistant system and circulation system. It provides reliable lubrication for large machinery and equipment such as machine tools injection molding machines. According to the different needs of customers various lubricating stations can be designed and made.

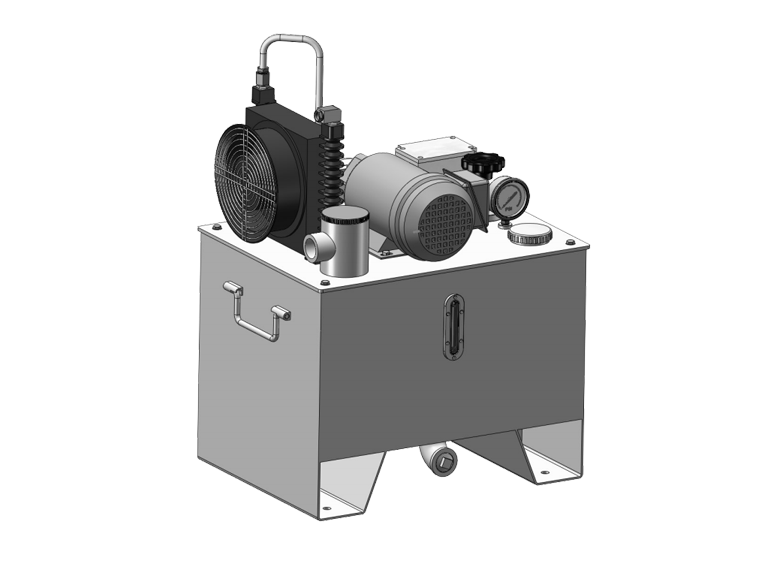

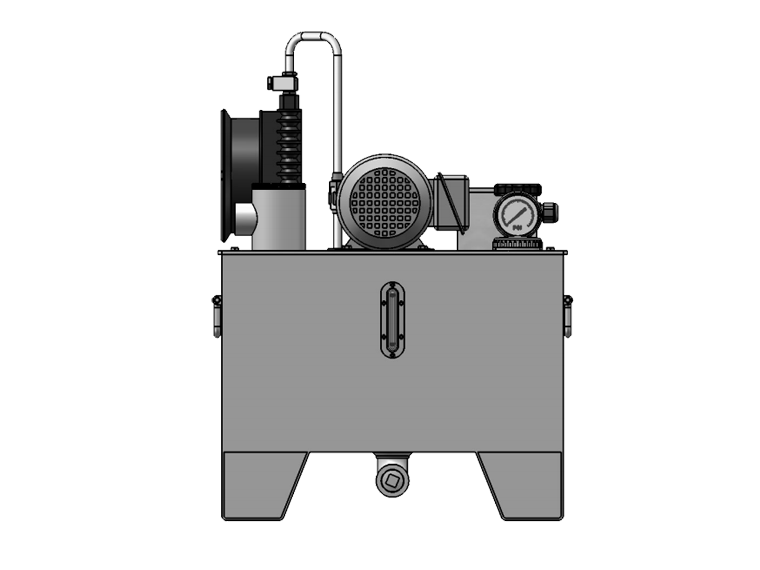

Appearance size diagram
Type and technical parameters:
| project |
article number |
supply voltage | horsepower | nominal flow rate | throw out the caliber | rated pressure | pressure switch | liquid level switch | fuel tank capacity | L | W | H | L1(*W1) | |
|
type |
(V) | （HP) | (L/min) | (mm) | (kgf/cm2) | (kgf/cm2) | (L) | (mm) | (mm) | (mm) | (mm) | |||
| YLD | 110111 |
one way110 one way220 three-phase220/380 |
1/4 |
2.2 3.7 5.2 |
φ6 φ8 φ10 |
5 | 2.1↑off |
Down current |
20L(me |
460 | 350 | 220 | 370(*260) | |
|
30L(me |
260 | |||||||||||||
|
40L(me |
340 | |||||||||||||
|
60L(me |
310 | 500(*350) | ||||||||||||
|
80L(me |
600 | 450 | 390 | |||||||||||
|
100L(me |
460 | |||||||||||||
hydraulic schematic diagram
