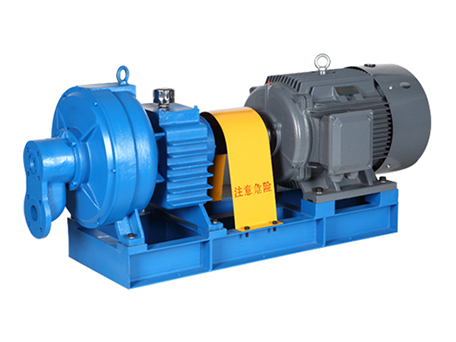

SX-3 series rotary jet pump

Model:SX-3/SX-3S

Category:SX-3 Series

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

The inlet pressure is less than 1.5Mpa.

Traffic: 1~24 m3/h

Lift: 140~395m

Speed range: 4000rpm

Maximum efficiency: 55%

Matching power: 15~55kw

Pump head size: 725*460*547 (L*W*H)

Weight of pump head: 194~210kg


Imported supporting flange: DN50

Exit matching flange: DN40

Overflow component material selection


Please contact us for the specific appearance and size of the installation

Name SX-3 series rotary jet pump
Model SX-3/SX-3S
Description The inlet pressure is less than 1.5Mpa.

Traffic: 1~24 m3/h

Lift: 140~395m

Speed range: 4000rpm

Maximum efficiency: 55%

Matching power: 15~55kw

Pump head size: 725*460*547 (L*W*H)

Weight of pump head: 194~210kg


Imported supporting flange: DN50

Exit matching flange: DN40

Overflow component material selection


Please contact us for the specific appearance and size of the installation
Imported supporting flange: DN50

Exit matching flange: DN40

Overflow component material selection


Please contact us for the specific appearance and size of the installation
1、 The supply cycle indicates that the supply cycle of the whole pump is 2 to 3 months, and the spare parts are about 1 months, due to the difference of the specific working conditions (the material and electric motor of the pump will change due to the change of working conditions).
2、 Medium condition: when ordering products, please provide detailed medium parameters (composition and content, temperature, specific gravity, viscosity, etc.).
